YASKAWA SGDV-200A25A000FT006 Market price | SGDV-200A25A000FT006 Introduction

Brand: YASKAWA
Country:
Name: Best use servo unit
Price: 0

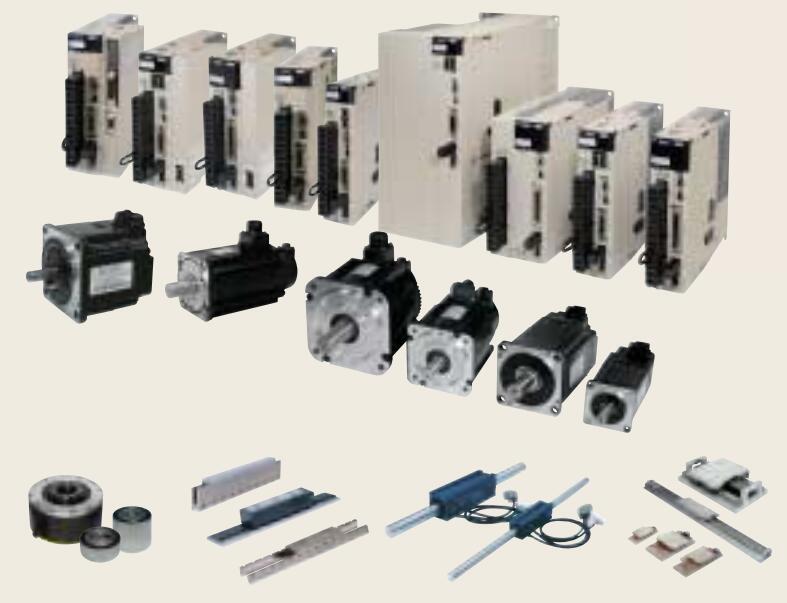

YASKAWA SGDV-200A25A000FT006
Servo motor SGMGH type.
Rated speed: 1500r\/min.
Power: 2.9kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: high precision machine tool.
Shaft end: straight shaft without key.
Optional parts: with oil seal, DC24V brake.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain SGDV-200A25A000FT006
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1\/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlSigma -V series servo motor SGMAV.
Rated output: 0.2KW (200W).
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with oil seal.
Super power rate.
Small capacity.
Ultra low inertia
Instantaneous maximum torque (rating 300%).
Equipped with a high resolution serial encoder (20 bit).
Max speed up to 6000r\/min.
Variety is complete (50W ~ 1.0kw, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationServo motor type SGMPH (speed: 3000r\/min).
Power: 0.1kw.
Power supply voltage: single phase AC100V.
Serial encoder: 16 bit relative value.
Design sequence: Waterproof standard IP67.
Shaft end: straight shaft with screw key.
Optional parts: with oil seal.
Partial flat series: the need to install the servo motor in a small space.
Flexible user system.
For you to build the best system to enrich the product line to support you.
Products with single phase 200V, single phase 100V, three-phase 200V,
And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated
SGDV-200A25A000FT006 Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=SGDV-200A25A000FT006&select=5
