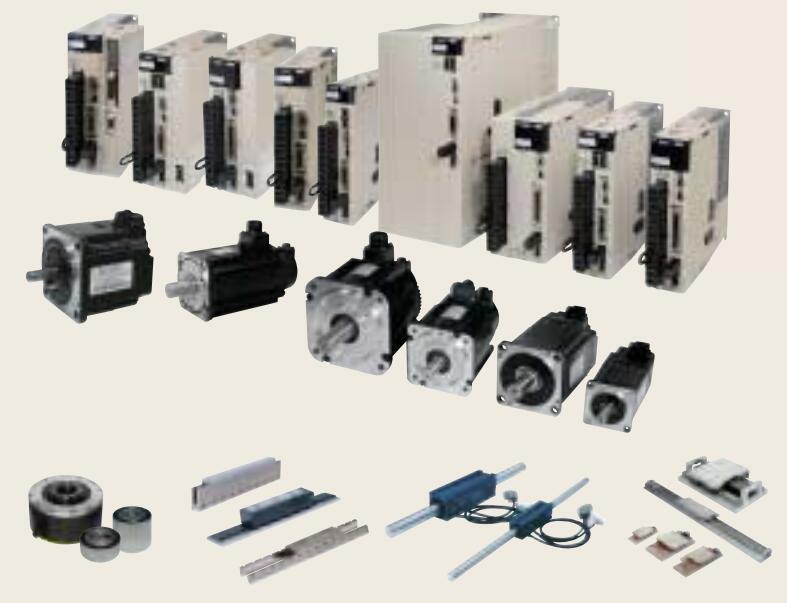

YASKAWA SGDV-550A15A003000 Market price | SGDV-550A15A003000 Introduction

Sigma -V series servo motor SGMGV.
Rated output: 450W (0.45KW).
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with hold brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit) SGDV-550A15A003000
Standard using IP67.
Use example:
Machine tool。
Transport machinery.
Handling machinery。
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationLarge capacity SGMVV type servo motor.
Rated output: 22KW.
Voltage: three phase AC200V.
Serial encoder: 20 bit delta.
Rated speed: 800r/min.
The main mechanical structure: flange type, straight shaft (without keyway and screw).
Optional parts: with hold brake (DC24V), with oil seal.
The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties.
The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r/min and 1500r/min products.
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happen.







Large capacity SGMVV type servo motor.
Rated output: 55KW.
Voltage: three phase AC400V.
Serial encoder: 20 bit absolute value type.
Rated speed: 1500r\/min.
The main mechanical structure: support mounting type, straight shaft (no keyway and screw).
Optional parts: with hold brake (DC90V).
The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties.
The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r\/min and 1500r\/min products.
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happen
SGDV-550A15A003000 Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=SGDV-550A15A003000&select=5
