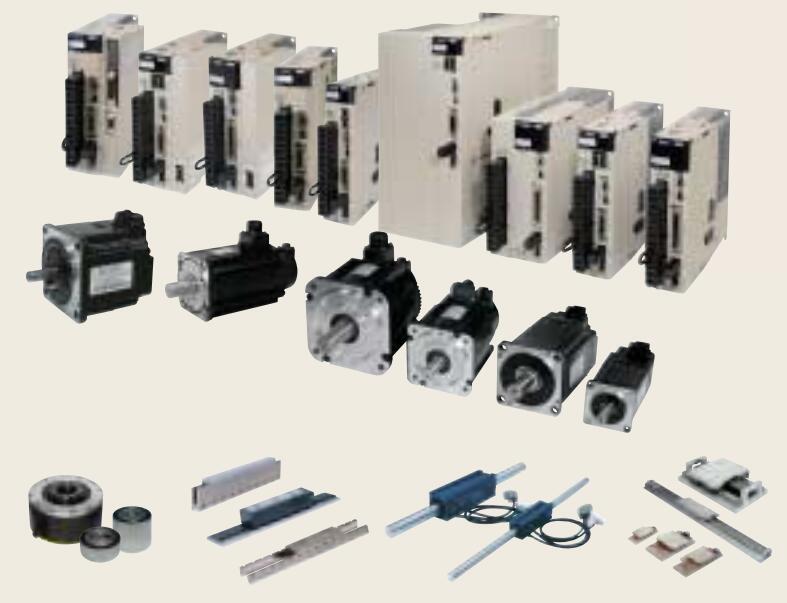

YASKAWA SGDV370D11A001000010 Market price | SGDV370D11A001000010 Introduction

Direct drive type servo motor SGMCV type.
Rated torque: M \/ 17N.
Servo motor diameter: diameter of 175mm.
Serial encoder: 22 bit (multi ring absolute encoder).
Design sequence: A.
Flange: reverse load side.
Optional parts: high mechanical precision (axis offset, offset 0.01mm).
Under the condition of no speed reducer, the load is directly driven.
Can be realized from low speed to high speed of the strong smooth running
(instantaneous maximum torque: 12 ~ 75N \/ m, maximum speed: 500 ~ 600r\/min) SGDV370D11A001000010
By using 22 bit high resolution encoder, the high precision can be carried out.
The use of hollow structure, convenient wiring and piping.
Use example:
Semiconductor manufacturing apparatus.
Liquid crystal circuit board manufacturing device.
Various inspection and test equipment.
Electronic component packaging machine.
C information processor.
C inspection equipment.
A variety of automated machinery.
ManipulatorServo motor SGMGH type.
Rated speed: 1000r\/min.
Power: 4.0kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit absolute value.
Design sequence: high precision machine tool.
Shaft end: straight shaft with screw key.
Optional parts: with oil seal, DC24V brake.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain.
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1\/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlServo motor SGMSH type.
Rated speed: 3000r\/min.
Power: 1.5kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit absolute value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with oil seal, DC24V brake.
Ultra high power response series: the need for small inertia, high torque.
Online automatic adjustment, automatic measurement of mechanical properties, set the required servo gain.
Even if the initial contact, can also be completed in a short time the best set.
Automatic identification of the motor, servo drive automatic identification of servo motor power, specifications, automatic setting motor parameters.
Standard for regenerative resistance connection terminals.
Connecting terminal equipped with external regenerative resistance,
Convenient connection regenerative resistor
SGDV370D11A001000010 Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=SGDV370D11A001000010&select=5
